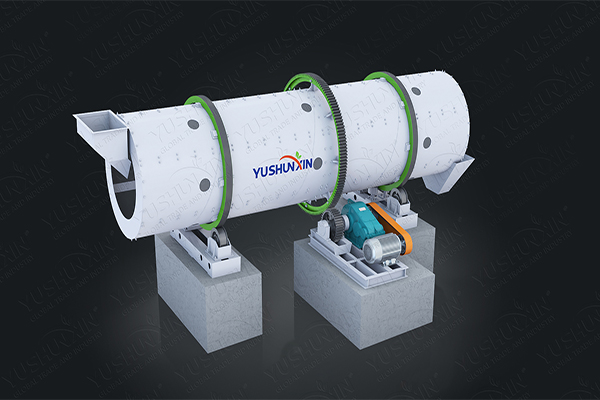

bio fertilizer rotary granulator

Drum Pelletizer in Biofertilizer Production Project

  • Capacity : 1-30 t/h

  • Power: 5.5-37 kw

  • Pellets size: 3-6 mm

  • Material: Carbon Steel

  • Application: Organic biofertilizer, Bio compound fertilizer…

The drum pelletizer in biofertilizer production project is a granulator that can make microorganism fertilizer into a specific shape. It uses a rotary drum design, and the output is about 1-30t/h per hour. Drum granulator for wet granulation, you can adjust the production of microbial fertilizer particle size. The granulation rate is up to 90%. What’s more, it is high efficiency, and price concessions. Moreover, our company has carried out relevant design innovations to effectively prevent lining corrosion, which is worth your choice.

What is drum pelletizer in biofertilizer production project ?

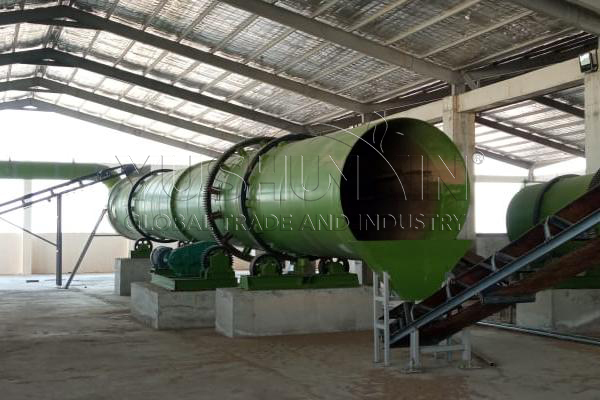

The biofertilizer drum granulator is suitable for use in the process of making bio fertilizer. Rotary Granulator belongs to one of the key fertilizer granulating equipment for making biological fertilizer granules. It is applyed to both cold and heat granulation with high, medium and large scale production. It is the machine that helps in the granulation process, which granules organic materials. The drum granulator consists of a rotating drum. It can mix and agglomerate the organic materials with added nutrients and binders to form uniform-sized granules. Therefore, This process helps in improving the handling, storage, and application of microorganism fertilizer, making them more convenient and efficient for use in agriculture.

What is the structure of biofertilizer drum pelletizer?

The granulation drum is the main body of the rotary drum granulator. It can place the raw material. It is typically made of high-quality steel and uses rotation during the granulation process to form pellets. To prevent biofertilizer buildup, the drum contains a rubber liner.

The motor provides the power for the drum to rotate. At the same time, the gear transmission system ensures smooth and efficient rotation of the drum.

The base frame provides support for the entire drum granulator and ensures stability during operation.

The discharge chute collects and discharges the bio fertilizer particles completed in the rotary bio fertilizer pelletizer.

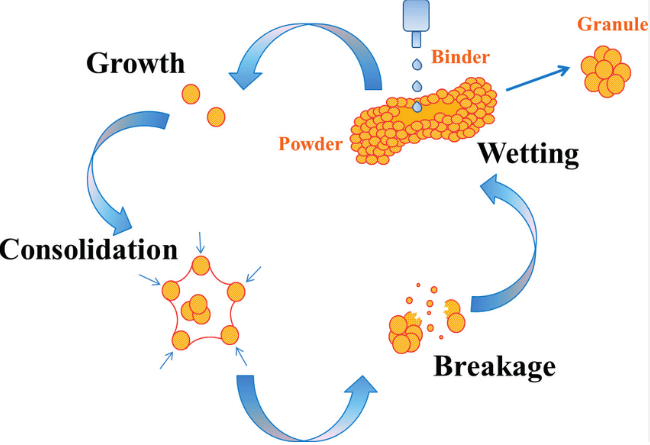

The spray system adds water or steam to the biofertilizer material in the roller to ensure the appropriate moisture content for granulation. Drum granulator in biofertilizer production project is a wet granulation process. It  requires a certain amount of water or steam, so this structure is a crucial part.

The control panel regulates and controls various parameters of the granulation process, such as drum speed, water flow, particle size, etc.

Overall, the structure of the biological fertilizer drum granulator is simple but effective. So this allows the efficient production of high-quality biological fertilizer granules.

What is the working principle of the Drum Pelletizer in biofertilizer production ?

The working principle of the rotating pelletizer is: the belt and pulley are driven by the main motor, the drive shaft is driven by the reducer, and the open gear installed on the drive shaft is fitted with the large tooth ring fixed on the body, and the opposite work. The material is added from the feed end through the inside of the cylinder. Through the special structure inside the cylinder, it is made into particles, and finally outflow through the discharge port. Because the material enters continuously, the granulator rotates continuously. You can achieve mass production.

Buying high-quality biofertilizer drum pelletizer with $5,000-$15,000 from YUSHUNXIN

There are many factors that affect the price of the rotary drum granulator in the biofertilizer production project, including specifications, production capacity, production process and other factors.

Small drum pelletizer

If you have a limited budget or are just starting to enter the biofertilizer industry, we recommend that you purchase a small drum granulator. It costs $5,000-$8,000 and produces 1-5 tons per hour. It has less initial investment, energy consumption, and maintenance costs.

rotary drum granulator

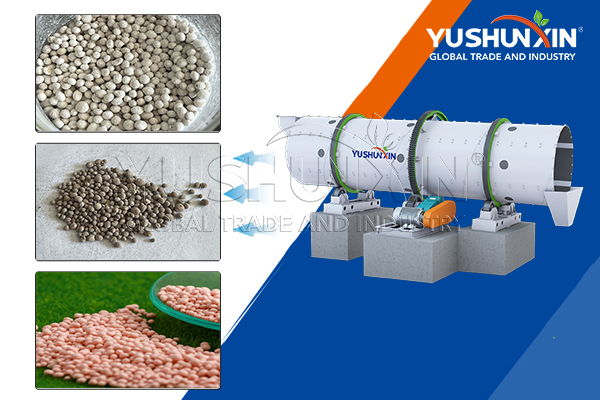

medium drum granulator

Medium rotary granulator

If you want to further expand your bio fertilizer production business, purchasing a medium-sized drum pelletizer is a good choice. It can produce about 5-15 tons of bio fertilizer granules. The price is around $8,000-$12,000. Welcome to consult!

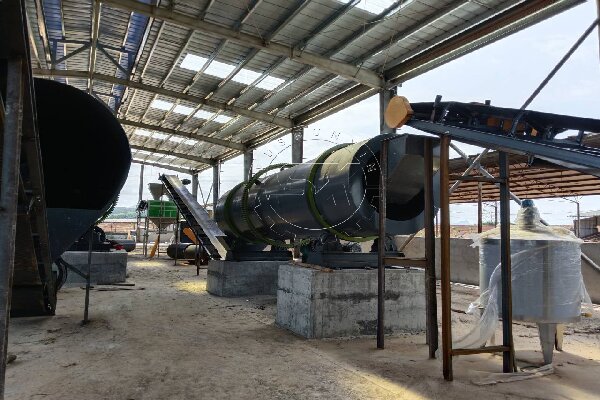

Large rotary pelletizer

For fertilizer manufacturers with sufficient funds who want to occupy the biofertilizer market, choosing a large drum granulating machine will be even more powerful. The price of this equipment sold by YUSHUNXIN is $12,000-$15,000. Of course, in addition to this, you can also contact us to customize the drum granulator.

large drum granulator

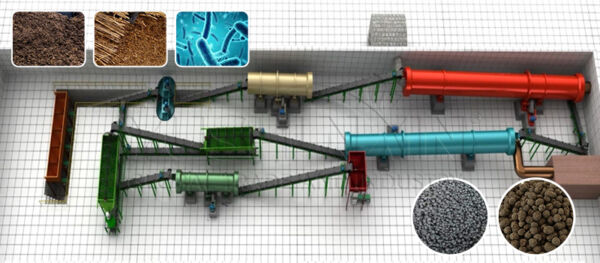

At the same time, you can not only buy the biological fertilizer rotary granulator separately, but also choose to buy the drum bio fertilizer granulation production line. Of course, the cost of the production line will be higher. If you are interested, please contact us. We can customize a suitable biofertilizer production line according to your budget.

Model Power(KW) Diameter(MM) Length(MM) Capacity(T/H)
SXZGZ-1560 11 1500 6000 3-5
SXZGZ-1870 15 1800 7000 5-8
SXZGZ-2080 18.5 2000 8000 8-15
SXZGZ-3210 37 3200 10000 15-30

What are the characteristics of biofertilizer drum pelletizer ?

Large capacity:

The bio fertilizer drum granulator has a high production capacity, making it suitable for large-scale production of microbial fertilizers. The output can reach 1-30 tons per hour.

High working efficiency:

The granulation rate of bio fertilizer is as high as 90%. The return material is less. Therefore, there is not much microbial fertilizer that needs to be granulated again.

Adjustable size:

By changing the rotation speed of the granulation drum and the Angle of the blades, to adjust the size of the biofertilizer produced by the biological rotary granulator. You can customize it according to specific crop requirements.

Anti-corrosion:

Because the drum granulator belongs to wet granulation, it often use a certain amount of water or steam . To avoid lining rust, Our company specially uses special rubber plate lining or acid-resistant stainless steel lining plate. This can achieve automatic scar removal and tumor removal, eliminating the traditional scraper device, reducing the machine wear rate.
